LED Downlight J Series
ADC12 aluminum alloy
Power: 10W/20W/30W/40W/50W-60W
Input voltage: AC180-240V/ AC100-277V
Beam angle: 24°/38°/55°/75°
IP54 dust and water protection grade
Anti-dazzle design
Dimmable：0-10V, DALI
5 years warranty
Illuminate Your Space with GAOPIN LED Downlight J Series
Upgrade your lighting with our LED downlight range, available in power options from 5W to 60W. Designed for various applications, these downlights fit into hole sizes of ø75, ø90, ø125, ø165, and ø200 mm, ensuring compatibility with multiple setups.
Exceptional Light Efficiency
Our high-efficiency reflective cups boost brightness, achieving impressive light efficiency of up to 140lm/w. This means your Shopping mall or offices are well-lit while consuming less energy, making it a smart choice for eco-conscious consumers.
Durable and Dimmable Lighting Solutions
The IP54 rating guarantees dust and water protection, suitable for various environments. The anti-dazzle design and dimmable options (0-10V, DALI) provide flexibility in creating the perfect ambiance. Enjoy peace of mind with a 5-year warranty on all products.
| Model | Power | Size | Hole size | Voltage 50/60Hz | Lumen | Beam Angle |
| GP-DL-JG-10W | 10W | Ø 86×55 | Ø 75 | AC180-240V/ AC100-277V | 100-140lm/W | 24°/38°/55° |
| GP-DL-JG-18W | 18W | Ø 100×60 | Ø 90 | AC180-240V/ AC100-277V | 100-140lm/W | 24°/38°/55° |
| GP-DL-JG-30W | 30W | Ø 140×75 | Ø 125 | AC180-240V/ AC100-277V | 100-140lm/W | 24°/38°/55° |
| GP-DL-JG-40W | 40W | Ø 180×95 | Ø 165 | AC180-240V/ AC100-277V | 100-140lm/W | 24°/38°/55° |
| GP-DL-JG-50W | 50W-60W | Ø 215×110 | Ø 200 | AC180-240V/ AC100-277V | 100-140lm/W | 24°/38°/55° |
Products Size
LED Downlight breakdown diagram

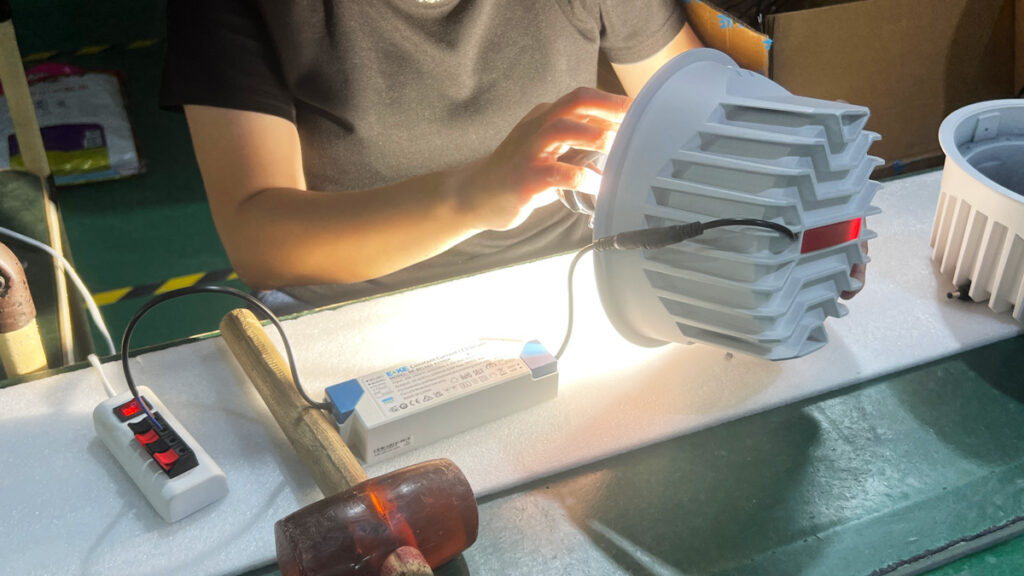

Test Report (30W)
IES Test Report {Download}
Our partners
We collaborate with leading mainstream LED Driver and COB light source brands, ensuring superior product quality and added value. This approach underscores the critical role of premium materials in enhancing the value and performance of LED Downlights.
COB Brand：
LED Driver Brand：
We can match different materials according to customer needs to 100% meet customer needs and ensure qualified quality.
How to choose the right LED downlight?
Re: Choosing the right LED downlight involves considering several factors to ensure it meets your lighting needs, aesthetic preferences, and energy efficiency goals. Here’s a detailed guide on how to make an informed decision:
How to Install LED Downlight :
- Switch off the main power supply to avoid electrical hazards.
- Cut the Ceiling Hole Measure and mark the desired spot. Use a hole saw or a power drill to cut a hole that fits the downlight housing.
- Locate the ceiling wiring.Connect the downlight wires (usually live, neutral, and ground) to the ceiling wiring using wire connectors.
- Push the connected downlight into the ceiling hole.Use the spring clips on the downlight housing to secure it in place.
- Tips for Safety
For complex installations or high-voltage systems, consult a certified electrician.
This process ensures a safe and efficient installation!
